Expert
Posts: 1265

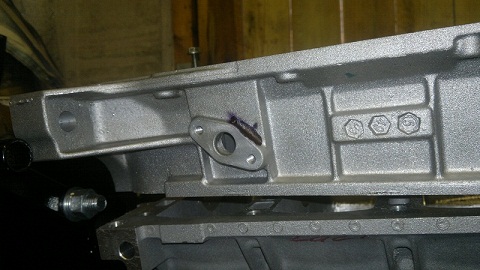

Location: barnsley | not the sump but the bottom half of the block you can see in this picture
8094.jpg?action=view&attachmentid=31330) (017 (5).jpg)
Attachments
----------------
 017 (5).jpg (68KB - 60 downloads)
|
|
| |
|
Expert
Posts: 1265
Location: barnsley | been to qed in leicster today to pick up some parts for the engine then down to vibration free in milton keynes to get them balanced should be ready to pick up friday so i can start putting the engine together at weekend will post some pics soon as im on a diffrent laptop and dont know how to use the new windows 7 mines in for repair |
|
| |
|
Expert
Posts: 1265
Location: barnsley | oops
Edited by dazbooker 25/1/2011 4:08 PM
|
|
| |
|
Member
Posts: 57
| daz where does your turbo water cooling plumb from ?
|
|
| |
|
Track Slag
Posts: 5060
Location: Washington | Thanks daz |
|
| |
|
Expert
Posts: 1265
Location: barnsley | elise - 26/1/2011 12:36 AM daz where does your turbo water cooling plumb from ? cold water feed from bottom hose and outlet into top hose |
|
| |
|
Expert
Posts: 1265

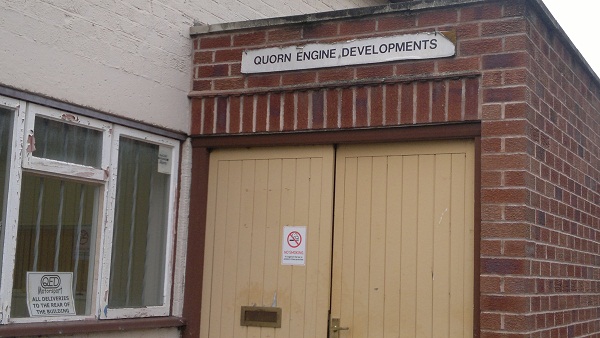

Location: barnsley | this is were i went on tuesday to pick my parts up when i walked in it smelt just like it did when i walked into the workshop when i was at college you know the engineering smell
 (383.jpg)
Attachments
----------------
|
|
| |
|
Expert
Posts: 2812

Location: Bournemouth | dazbooker - 25/1/2011 11:27 PM
this is were i went on tuesday to pick my parts up when i walked in it smelt just like it did when i walked into the workshop when i was at college you know the engineering smell
Eau de cutting fluid, you can't beat it |
|
| |
|
Member
Posts: 57
| dazbooker - 26/1/2011 12:28 PM
elise - 26/1/2011 12:36 AM daz where does your turbo water cooling plumb from ? cold water feed from bottom hose and outlet into top hose
ahh i was not sure if the 1.8t had a altered water outlet from the engine i know its a different shape to clear the manifold but expected there turbo feed to come off it |
|
| |
|
Member
Posts: 57
| dazbooker - 26/1/2011 12:28 PM
elise - 26/1/2011 12:36 AM daz where does your turbo water cooling plumb from ? cold water feed from bottom hose and outlet into top hose
ahh i was not sure if the 1.8t had a altered water outlet from the engine i know its a different shape to clear the manifold but expected there turbo feed to come off it |
|
| |
|
Expert
Posts: 1265

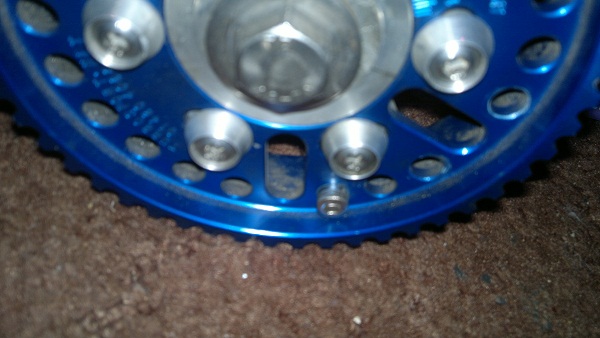

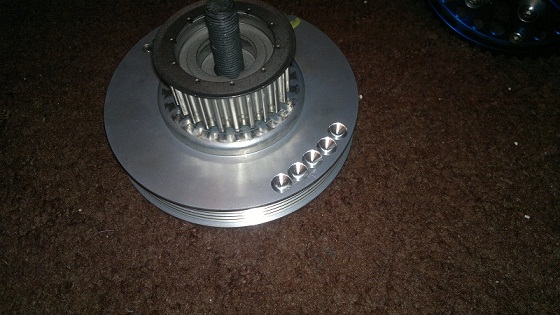

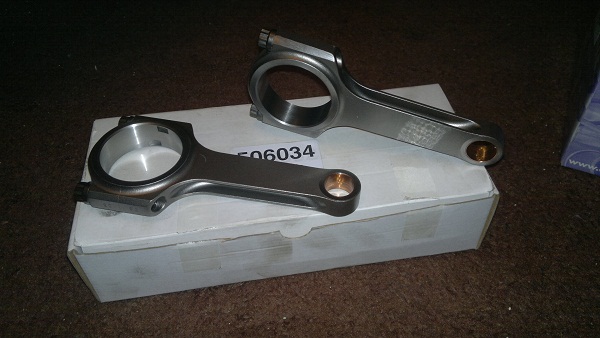

Location: barnsley | been to vibration free today to pick up the balanced parts crank didnt need balancing was absolutley blanced perfect pistons were spot on rods were 1.5 grames out overall ang the cams needed balancing as you can see by the photo ive added, they dont add or take anything off the cam but add weight to the pulley to balance it out and the crank pulley, flywheel and clutch done too
Edited by dazbooker 28/1/2011 2:59 PM
 (001.jpg)
 (003.jpg)
 (004.jpg)
 (005.jpg)
 (006.jpg)
Attachments
----------------
|
|
| |
|
Expert
Posts: 2812
Location: Bournemouth | Daz looking nice, very impressive
Are they turbosport verniers ? if so any good ? |
|
| |
|
Expert
Posts: 1265
Location: barnsley | djwilma - 28/1/2011 3:07 PM Daz looking nice, very impressive Are they turbosport verniers ? if so any good ? yeh turbo sport good pulleys these |
|
| |
|
Expert
Posts: 2812
Location: Bournemouth | dazbooker - 27/1/2011 11:10 PM
djwilma - 28/1/2011 3:07 PM Daz looking nice, very impressive Are they turbosport verniers ? if so any good ? yeh turbo sport good pulleys these
Sweet, purchased.....
enjoy putting it all together |
|
| |
|
Member
Posts: 57
| check if your pistons have an oil dripper underneath if it has they can foul on the rods
where as if it does foul then you will have to remove the dripper for clearance
|
|
| |
|
Expert
Posts: 1265

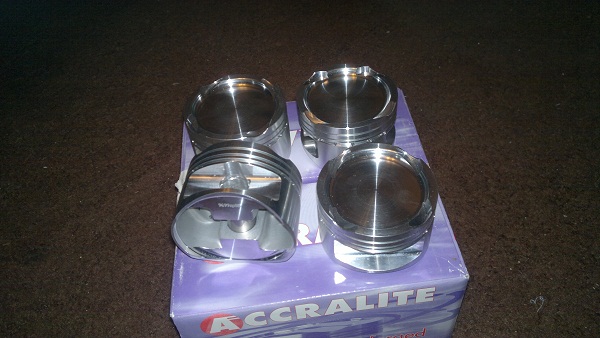

Location: barnsley | elise - 29/1/2011 6:14 AM check if your pistons have an oil dripper underneath if it has they can foul on the rods where as if it does foul then you will have to remove the dripper for clearance yes it does have a little peg that protrudes under the crown of the piston and also a hole in the top of the rod were the little end goes directley in line with the peg isnt this to lube the little end |
|
| |
|
Expert
Posts: 1265

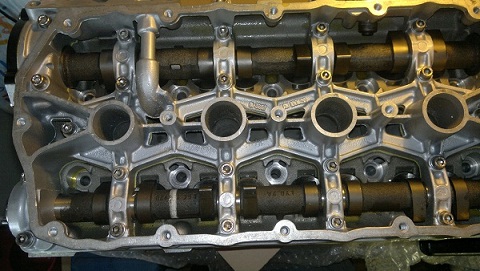

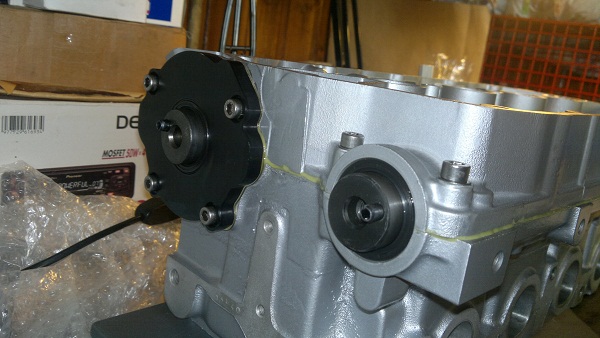

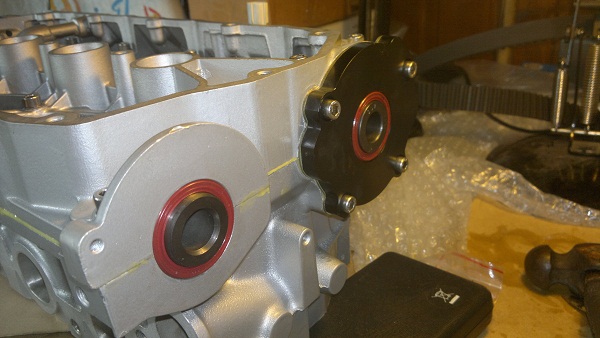

Location: barnsley | checked the end float and cam journal clearences all fall with in the recommended tollerances got the cams in and the adapters and oil seals fitted just got to clean the pulleys and there ready for fitting
 (001.jpg)
 (002.jpg)
 (003.jpg)
Attachments
----------------
|
|
| |
|
Member
Posts: 57
| dazbooker - 29/1/2011 6:47 AM
elise - 29/1/2011 6:14 AM check if your pistons have an oil dripper underneath if it has they can foul on the rods where as if it does foul then you will have to remove the dripper for clearance yes it does have a little peg that protrudes under the crown of the piston and also a hole in the top of the rod were the little end goes directley in line with the peg isnt this to lube the little end
yep thats the idea but trail fit and check as on some rods the pip can foul the small end
|
|
| |
|
Expert
Posts: 1265
Location: barnsley | elise - 29/1/2011 7:22 AM dazbooker - 29/1/2011 6:47 AM elise - 29/1/2011 6:14 AM check if your pistons have an oil dripper underneath if it has they can foul on the rods where as if it does foul then you will have to remove the dripper for clearance yes it does have a little peg that protrudes under the crown of the piston and also a hole in the top of the rod were the little end goes directley in line with the peg isnt this to lube the little end yep thats the idea but trail fit and check as on some rods the pip can foul the small end already trial fitted them the pip does foul do i just need to file it down slightley or remove it completely |
|
| |
|
Expert
Posts: 1265

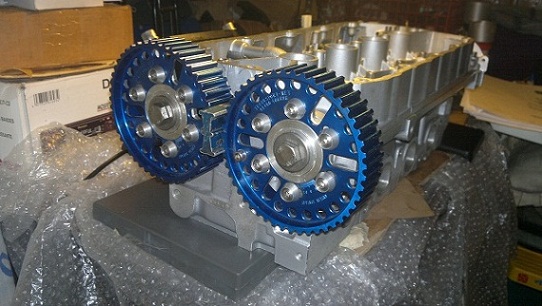

Location: barnsley | got the pulleys fitted but come to fit them and realised the exhaust cam had been running 2.5 degrees advanced adjusted that now but need to set the lift when ive got the engine built
Edited by dazbooker 29/1/2011 9:29 AM
 (004.jpg)
Attachments
----------------
|
|
| |
|
Member
Posts: 57
| dazbooker - 29/1/2011 8:24 AM
elise - 29/1/2011 7:22 AM dazbooker - 29/1/2011 6:47 AM elise - 29/1/2011 6:14 AM check if your pistons have an oil dripper underneath if it has they can foul on the rods where as if it does foul then you will have to remove the dripper for clearance yes it does have a little peg that protrudes under the crown of the piston and also a hole in the top of the rod were the little end goes directley in line with the peg isnt this to lube the little end yep thats the idea but trail fit and check as on some rods the pip can foul the small end already trial fitted them the pip does foul do i just need to file it down slightley or remove it completely
just remove them jobs done
|
|
| |
|
Expert
Posts: 1265
Location: barnsley | elise - 29/1/2011 10:43 AM dazbooker - 29/1/2011 8:24 AM elise - 29/1/2011 7:22 AM dazbooker - 29/1/2011 6:47 AM elise - 29/1/2011 6:14 AM check if your pistons have an oil dripper underneath if it has they can foul on the rods where as if it does foul then you will have to remove the dripper for clearance yes it does have a little peg that protrudes under the crown of the piston and also a hole in the top of the rod were the little end goes directley in line with the peg isnt this to lube the little end yep thats the idea but trail fit and check as on some rods the pip can foul the small end already trial fitted them the pip does foul do i just need to file it down slightley or remove it completely just remove them jobs done if i remove this will it stop lubrication of the little end |
|
| |
|
Member
Posts: 57
| dazbooker - 29/1/2011 10:45 AM
elise - 29/1/2011 10:43 AM dazbooker - 29/1/2011 8:24 AM elise - 29/1/2011 7:22 AM dazbooker - 29/1/2011 6:47 AM elise - 29/1/2011 6:14 AM check if your pistons have an oil dripper underneath if it has they can foul on the rods where as if it does foul then you will have to remove the dripper for clearance yes it does have a little peg that protrudes under the crown of the piston and also a hole in the top of the rod were the little end goes directley in line with the peg isnt this to lube the little end yep thats the idea but trail fit and check as on some rods the pip can foul the small end already trial fitted them the pip does foul do i just need to file it down slightley or remove it completely just remove them jobs done if i remove this will it stop lubrication of the little end
no it will be fine this is from some one else who found the same problem
"As suspected Accralite confirmed all our suspicions that was, in their words, a pip. Apparently “pips” are supposed to be removed as part of the finishing process at the factory. They were very apologetic of their error and advised I was ok to remove the pip myself. So with a dremel in hand I spend a very nerve racking 20 minutes removing the pips from the four pistons."
it has been said the pip is for an oil drip but it wont matter no other piston i know has this pip , oil will be splashing everywhere |
|
| |
|
Expert
Posts: 6619
Location: Guildford | You say they ad weight to the pulley to balance the cam, wont this mean altering the cam timing will alter the balance as the weight has been put on the outer rim of the pulley? |
|
| |
|
Expert
Posts: 1265
Location: barnsley | Access_denied - 30/1/2011 3:51 AM You say they ad weight to the pulley to balance the cam, wont this mean altering the cam timing will alter the balance as the weight has been put on the outer rim of the pulley? thats right so ideally you need to have the verniers set before you send them for balancing i thought mine were set before i took them but didnt realise i was out on the exhaust cam theyve only added 0.5 grammes so wont really notice a problem they told me the k series engine is pretty well balanced to start with its just when you start adding after market parts is when it unbalances things as they dont take time balancing them when they manufacture them its all down to cost |
|
| |
