dazbooker |
| ||

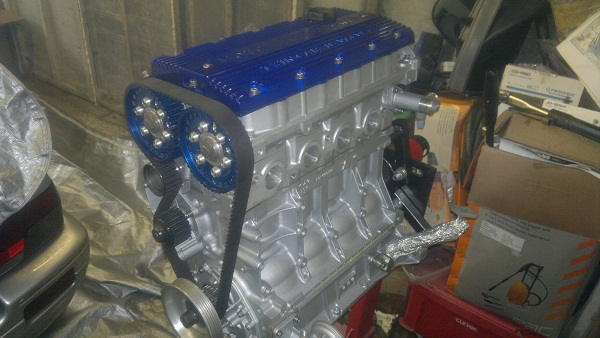

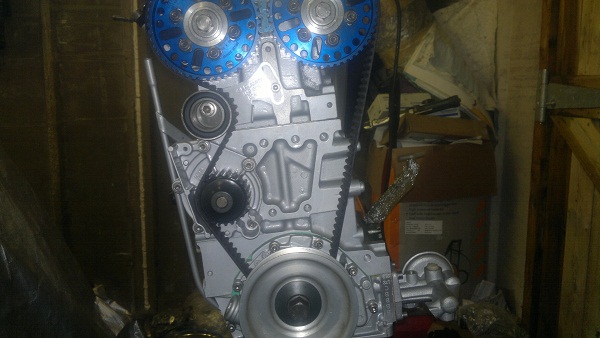

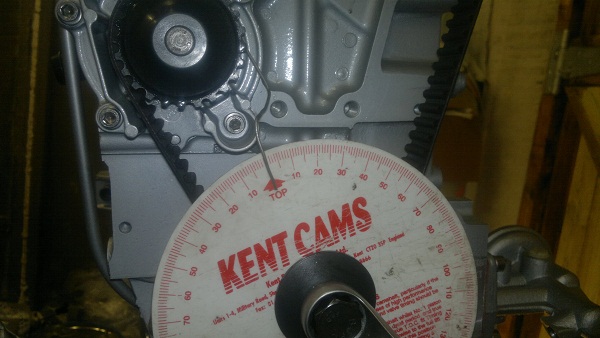

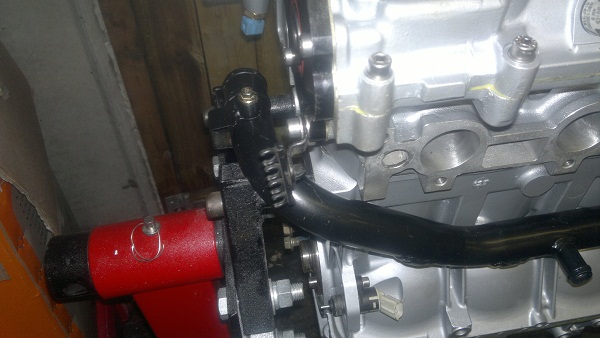

| Expert Posts: 1265    Location: barnsley | got the cams all set up with the verniers inlet needed advancing very slightley to gain full lift and exhaust needed retarding very slightley to gain full lift heres some pics of the timing disc set to tdc before i adjusted the verniers the timing belt on and the new water outlet elbow fitted  (001.jpg)  (002.jpg)  (003.jpg) Attachments ----------------  001.jpg (83KB - 67 downloads) 002.jpg (84KB - 71 downloads) 003.jpg (78KB - 68 downloads) | ||
| dazbooker |
| ||

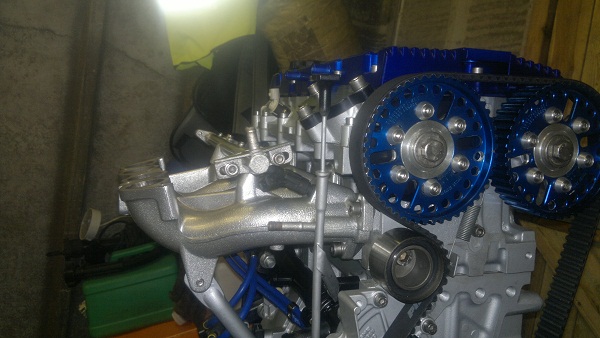

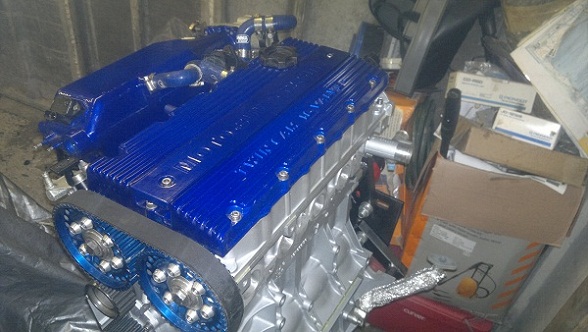

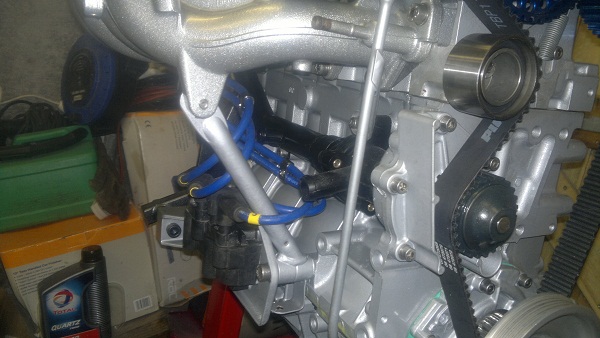

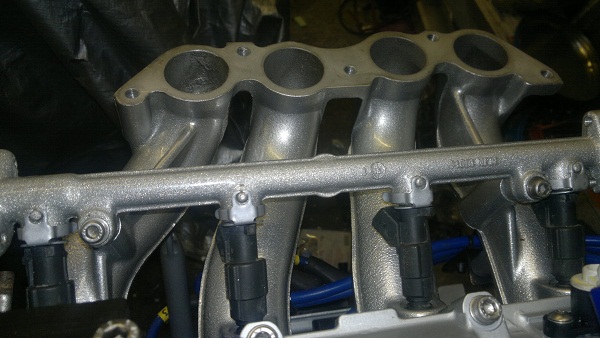

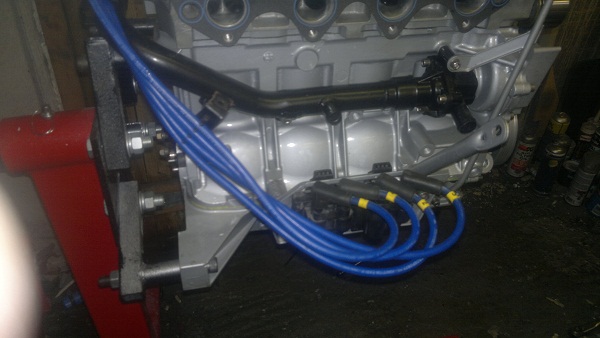

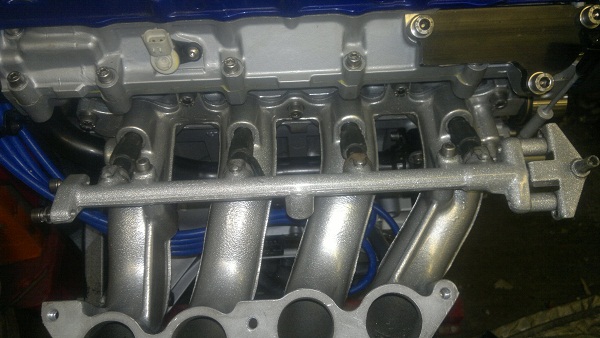

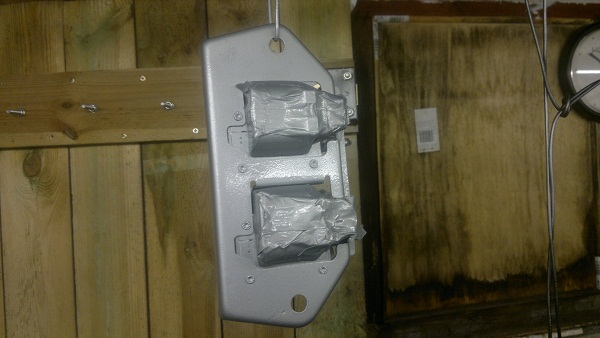

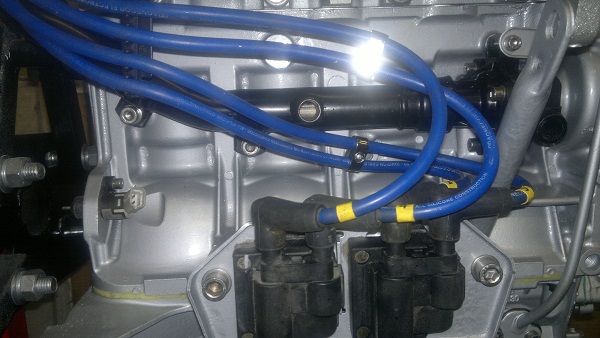

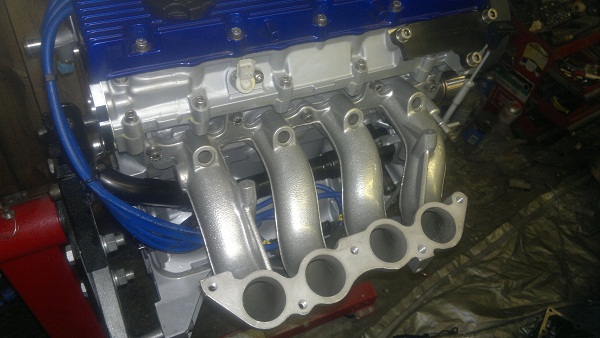

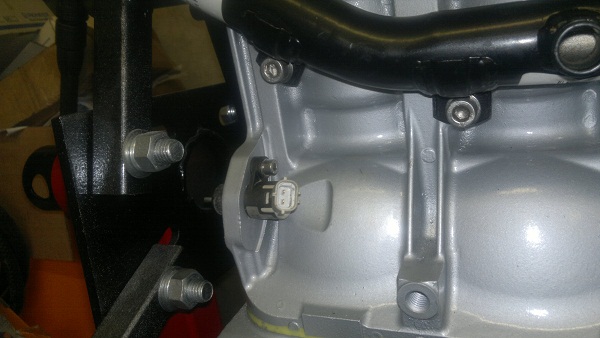

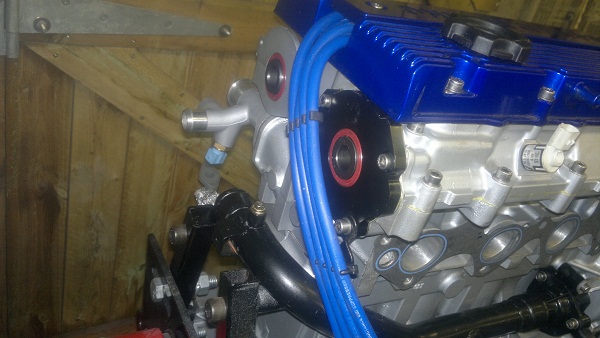

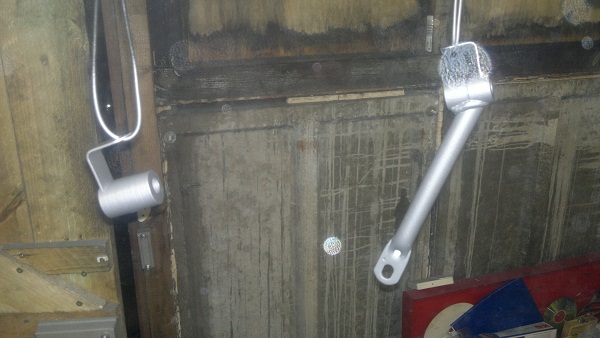

| Expert Posts: 1265 Location: barnsley | been busy today got the rocker cover on painted some parts before fitting on the engine and fitted the lower manifol and fuel rail  (001.jpg)  (002.jpg)  (003.jpg)  (004.jpg)  (005.jpg)  (006.jpg)  (007.jpg)  (008.jpg)  (009.jpg)  (010.jpg)  (011.jpg)  (012.jpg)  (013.jpg)  (014.jpg) Attachments ---------------- 001.jpg (97KB - 66 downloads) 002.jpg (73KB - 73 downloads) 003.jpg (78KB - 60 downloads) 004.jpg (76KB - 69 downloads) 005.jpg (84KB - 67 downloads) 006.jpg (83KB - 67 downloads) 007.jpg (70KB - 63 downloads) 008.jpg (92KB - 66 downloads) 009.jpg (76KB - 70 downloads) 010.jpg (92KB - 73 downloads) 011.jpg (96KB - 72 downloads) 012.jpg (94KB - 73 downloads) 013.jpg (91KB - 66 downloads) 014.jpg (94KB - 74 downloads) | ||
| dazbooker |
| ||

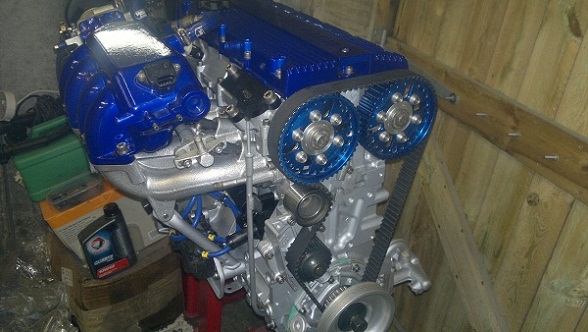

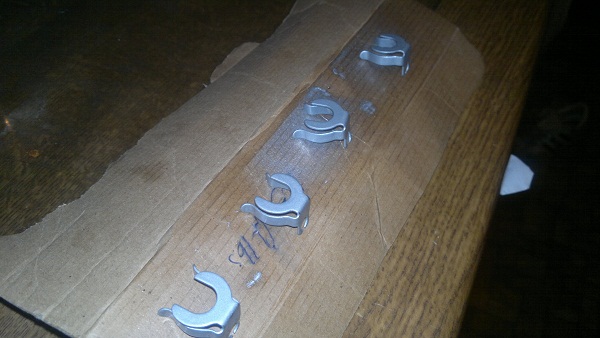

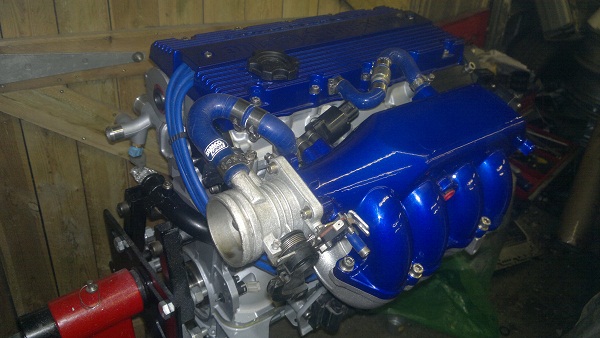

| Expert Posts: 1265 Location: barnsley | painted my old injector clips as couldnt get new and cleaned upper half of inlet manifold and fitted to lower half need to remove sump from old engine to get powder coated and then i can fit it to new engine looks like a weekend job  (001.jpg)  (002.jpg)  (003.jpg)  (004.jpg)  (005.jpg) Attachments ---------------- 001.jpg (80KB - 61 downloads) 002.jpg (93KB - 66 downloads) 003.jpg (99KB - 76 downloads) 004.jpg (95KB - 69 downloads) 005.jpg (98KB - 64 downloads) | ||
| djwilma |
| ||
 Expert Posts: 2812   Location: Bournemouth | |||
| dazbooker |
| ||
| Expert Posts: 1265 Location: barnsley | |||
| Turley_vvc |
| ||
 Posts: 2794 Location: Tamworth/Measham | excuse me french but that is fooking amazin daz,wona build my engine back up for me  | ||
| dazbooker |
| ||
| Expert Posts: 1265 Location: barnsley | Turley_vvc - 8/2/2011 9:47 PM excuse me french but that is fooking amazin daz,wona build my engine back up for me can do mate get the parts and ill give you an hand | ||
| munday |
| ||
 Expert Posts: 5629  Location: Letchworth/Basildon | dazbooker - 5/2/2011 6:26 PM munday - 5/2/2011 9:53 AM dazbooker - 5/2/2011 2:08 PM With that sort of CR you can run some healthy boost through that just worked compression ratio works out at 8.257 plus or minus 0.500 to 1 means i can run more boost over standard ratio 9.200 to 1 plus or minus 0.500 to 1 May seem a little more sluggish off boost, but as its in a metro you will hardly notice it what sort of boost pressure do you reckon i coul run with this cr Well if it were mine (I wish) depending on the turb being used I would run up to 18psi at first and see how it was on a stock turbo no more than 15psi, with a bigger turbo and the same boost you could have more power safely rather than running extra boost on the stock gt20. But it's only my opinion, others may disagree Really nice journal and love the work going into this | ||
| munday |
| ||
Expert Posts: 5629 Location: Letchworth/Basildon | dazbooker - 5/2/2011 6:26 PM munday - 5/2/2011 9:53 AM dazbooker - 5/2/2011 2:08 PM With that sort of CR you can run some healthy boost through that just worked compression ratio works out at 8.257 plus or minus 0.500 to 1 means i can run more boost over standard ratio 9.200 to 1 plus or minus 0.500 to 1 May seem a little more sluggish off boost, but as its in a metro you will hardly notice it what sort of boost pressure do you reckon i coul run with this cr Well if it were mine (I wish) depending on the turb being used I would run up to 18psi at first and see how it was on a stock turbo no more than 15psi, with a bigger turbo and the same boost you could have more power safely rather than running extra boost on the stock gt20. But it's only my opinion, others may disagree Really nice journal and love the work going into this | ||
| Turley_vvc |
| ||
Posts: 2794 Location: Tamworth/Measham | dazbooker - 8/2/2011 1:56 PM Turley_vvc - 8/2/2011 9:47 PM excuse me french but that is fooking amazin daz,wona build my engine back up for me can do mate get the parts and ill give you an hand Cheers but how would that work lol | ||
| dazbooker |
| ||
| Expert Posts: 1265 Location: barnsley | Turley_vvc - 8/2/2011 10:07 PM dazbooker - 8/2/2011 1:56 PM Turley_vvc - 8/2/2011 9:47 PM excuse me french but that is fooking amazin daz,wona build my engine back up for me can do mate get the parts and ill give you an hand Cheers but how would that work lol if you really want it doing you would have to drop it up to me with all your bits and ill build it for you | ||
| dazbooker |
| ||
| Expert Posts: 1265 Location: barnsley | munday - 8/2/2011 10:00 PM dazbooker - 5/2/2011 6:26 PM munday - 5/2/2011 9:53 AM dazbooker - 5/2/2011 2:08 PM With that sort of CR you can run some healthy boost through that just worked compression ratio works out at 8.257 plus or minus 0.500 to 1 means i can run more boost over standard ratio 9.200 to 1 plus or minus 0.500 to 1 May seem a little more sluggish off boost, but as its in a metro you will hardly notice it what sort of boost pressure do you reckon i coul run with this cr Well if it were mine (I wish) depending on the turb being used I would run up to 18psi at first and see how it was on a stock turbo no more than 15psi, with a bigger turbo and the same boost you could have more power safely rather than running extra boost on the stock gt20. But it's only my opinion, others may disagree Really nice journal and love the work going into this going to have to use the gt20 turbo as theres no room for a bigger turbo standard pressure is about 10 psi at the moment was running 15 psi but didnt feel like it was safe on standard rods and pistons so maybe i could try that first | ||
| munday |
| ||
Expert Posts: 5629 Location: Letchworth/Basildon | Yeah wouldnt feel too comfortable running any more than that. I would worry about inlet temps but you can moniter these cant you? So thats great! With a gt28 you could run 15psi but be in a whole new league of power. Proably not what you're aiming for though  | ||
| Roverdose |
| ||
| Veteran Posts: 444 | |||
| djwilma |
| ||
Expert Posts: 2812 Location: Bournemouth | munday - 8/2/2011 10:10 AM With a gt28 you could run 15psi but be in a whole new league of power. Proably not what you're aiming for though Here we go again   | ||
| dazbooker |
| ||
| Expert Posts: 1265 Location: barnsley | |||
| muzza |
| ||
 Nutta With An Orange Grille Posts: 5280 Location: Who put that pit there keep falling down :( | |||
| djwilma |
| ||
Expert Posts: 2812 Location: Bournemouth | |||
| dazbooker |
| ||
| Expert Posts: 1265 Location: barnsley | |||
| Roverdose |
| ||
| Veteran Posts: 444 | |||
| Access_denied |
| ||
 Expert Posts: 6619 Location: Guildford | munday - 9/2/2011 8:10 AM Yeah wouldnt feel too comfortable running any more than that. I would worry about inlet temps but you can moniter these cant you? So thats great! With a gt28 you could run 15psi but be in a whole new league of power. Proably not what you're aiming for though I dont get this, if 2 turbo's are both making 15psi at 4500rpm for example how will one make more power than the other assuming 15 psi is within the efficiency range of both? I can see the bigger turbo making the same boost at higher rpms but if the small turbo is not outside its comfort zone in the RPM range you require why would a bigger turbo make more power? | ||
| munday |
| ||
Expert Posts: 5629 Location: Letchworth/Basildon | Access_denied - 10/2/2011 7:16 PM munday - 9/2/2011 8:10 AM Yeah wouldnt feel too comfortable running any more than that. I would worry about inlet temps but you can moniter these cant you? So thats great! With a gt28 you could run 15psi but be in a whole new league of power. Proably not what you're aiming for though I dont get this, if 2 turbo's are both making 15psi at 4500rpm for example how will one make more power than the other assuming 15 psi is within the efficiency range of both? I can see the bigger turbo making the same boost at higher rpms but if the small turbo is not outside its comfort zone in the RPM range you require why would a bigger turbo make more power? Its because the bigger turbo will flow more air at a given pressure than a smaller one. This is kinda an extreme example http://www.youtube.com/watch?v=qrb2sBGI8Sk | ||
| Access_denied |
| ||
Expert Posts: 6619 Location: Guildford | munday - 10/2/2011 5:52 PM Access_denied - 10/2/2011 7:16 PM munday - 9/2/2011 8:10 AM Yeah wouldnt feel too comfortable running any more than that. I would worry about inlet temps but you can moniter these cant you? So thats great! With a gt28 you could run 15psi but be in a whole new league of power. Proably not what you're aiming for though I dont get this, if 2 turbo's are both making 15psi at 4500rpm for example how will one make more power than the other assuming 15 psi is within the efficiency range of both? I can see the bigger turbo making the same boost at higher rpms but if the small turbo is not outside its comfort zone in the RPM range you require why would a bigger turbo make more power? Its because the bigger turbo will flow more air at a given pressure than a smaller one. This is kinda an extreme example http://www.youtube.com/watch?v=qrb2sBGI8Sk That does not make sense, boyles law says that air pressure and mass are intrisicly linked so if the pressure is the same, the volume of the container is the same (same engine) and the air temperature is the same then the mass of air is the same. You have to run higher rpm's to run lower boost so its all a trade off, make an engine capable of running boost or high RPMs or both if you have deep pockets. Edited by Access_denied 10/2/2011 12:06 PM | ||
| munday |
| ||
Expert Posts: 5629 Location: Letchworth/Basildon | |||
| dazbooker |
| ||
| Expert Posts: 1265 Location: barnsley | |||
