turbo k series
Moderators:

Jump to page : 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35
Now viewing page 20 [25 messages per page]
   Gallery-> Members' JournalsMessage format

dazbooker
Posted 27/6/2009 3:07 PM (#518439 - in reply to #474141)
Subject: RE: turbo k series
Expert

Posts: 1265
10001001002525

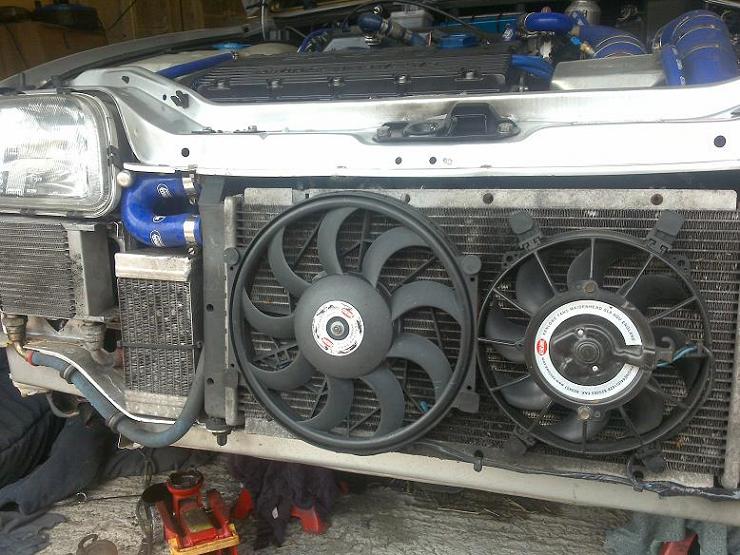

Location: barnsley		i thought id take apic of the fans while i had the bumper off just to show how there situated

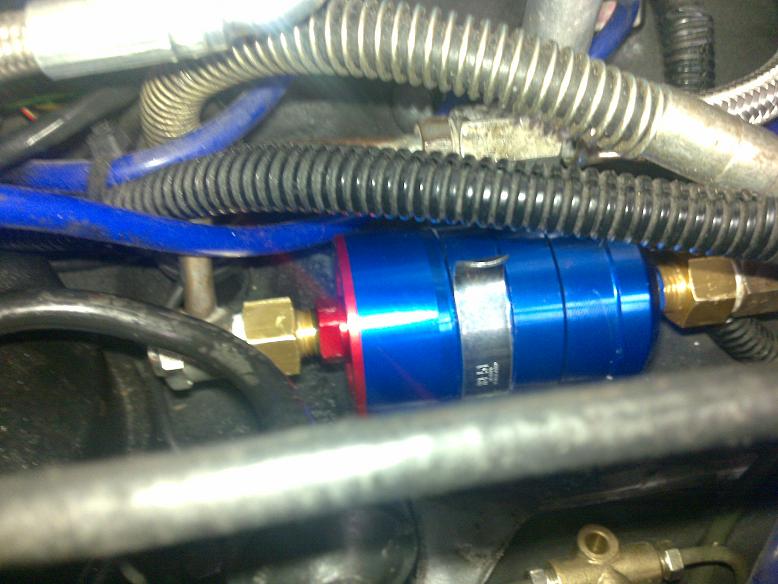

and my new high flow fuel filter



(006.jpg)



(007.jpg)



Attachments
----------------
Attachments 006.jpg (97KB - 126 downloads)
Attachments 007.jpg (73KB - 101 downloads)
nig33
Posted 28/6/2009 7:47 AM (#518497 - in reply to #474141)
Subject: RE: turbo k series
On a final warning

Posts: 457
1001001001002525
Location: here, there, everywhere		speechless
dazbooker
Posted 30/6/2009 6:19 PM (#518896 - in reply to #474141)
Subject: RE: turbo k series
Expert

Posts: 1265
10001001002525

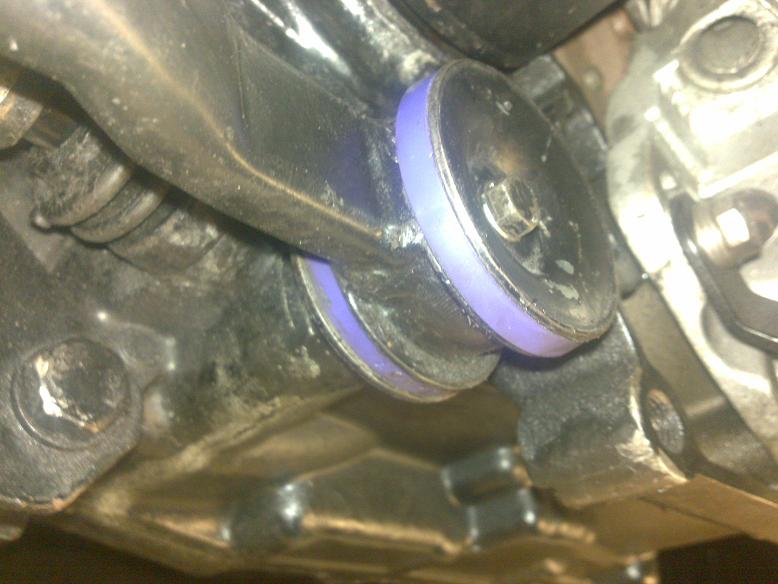

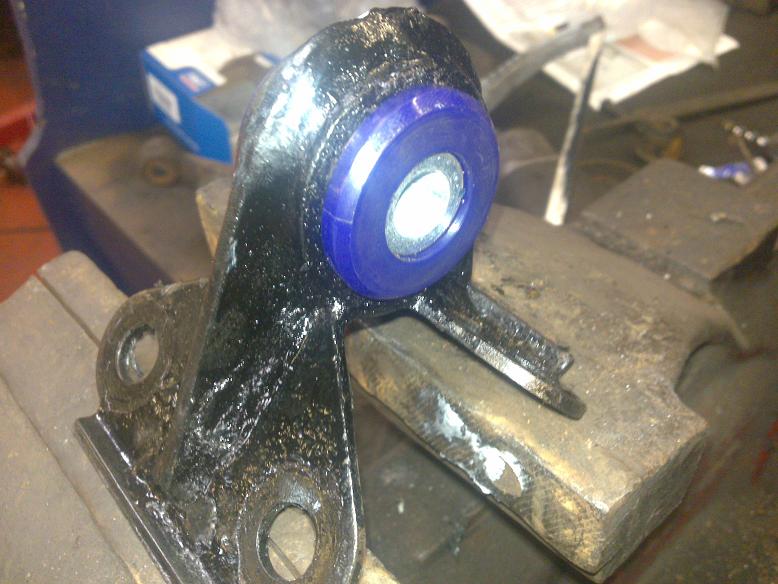

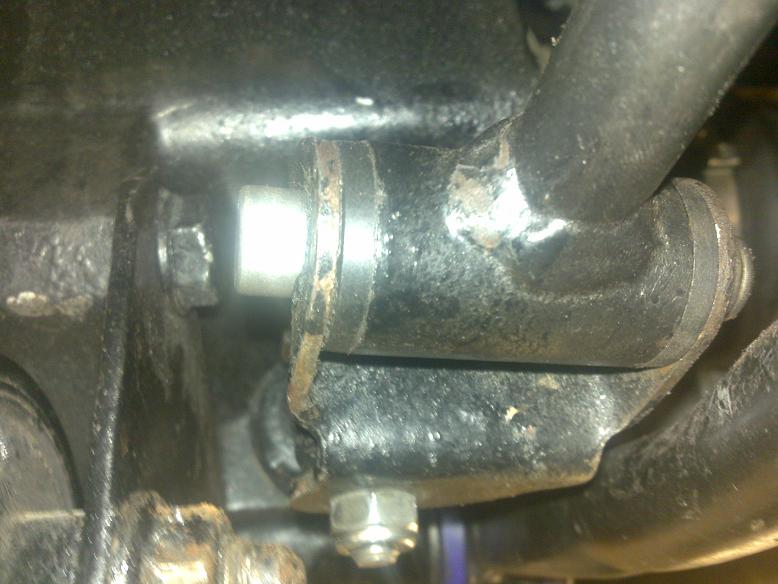

Location: barnsley		heres the poly bushes fitted in the gear selector



(002.jpg)



(003.jpg)



(004.jpg)



Attachments
----------------
Attachments 002.jpg (39KB - 107 downloads)
Attachments 003.jpg (66KB - 104 downloads)
Attachments 004.jpg (67KB - 95 downloads)
dazbooker
Posted 30/6/2009 6:24 PM (#518897 - in reply to #474141)
Subject: RE: turbo k series
Expert

Posts: 1265
10001001002525

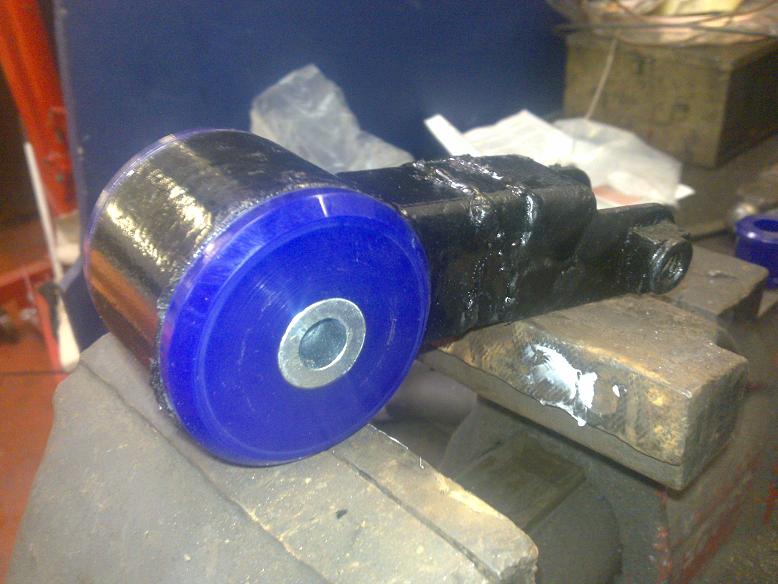

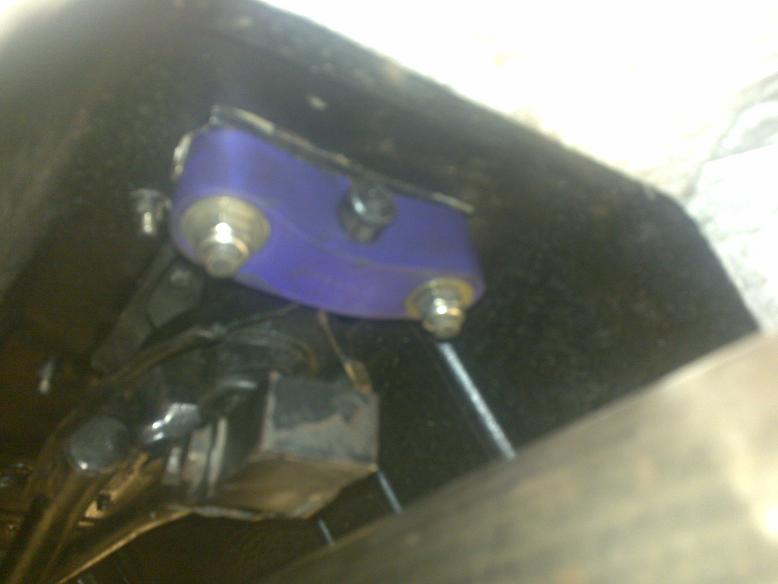

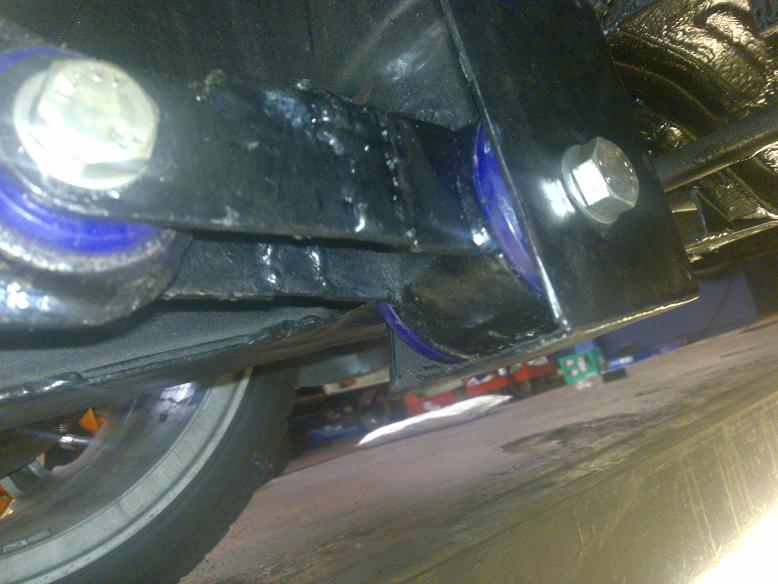

Location: barnsley		and the stabilizer bar



(005.jpg)



(007.jpg)



(008.jpg)



Attachments
----------------
Attachments 005.jpg (71KB - 97 downloads)
Attachments 007.jpg (79KB - 91 downloads)
Attachments 008.jpg (70KB - 91 downloads)
quick_spider
Posted 30/6/2009 6:27 PM (#518898 - in reply to #474141)
Subject: RE: turbo k series
Expert

Posts: 4262
200020001001002525
Location: Tebworth		Looks very nice.

There's a further mod to the selector mechanism which replaces the linkage part in pic 004 with the UJ from a steering column - makes the gear change even more positive.
purple-haze
Posted 3/7/2009 12:17 PM (#519233 - in reply to #474141)
Subject: RE: turbo k series


Expert

Posts: 1364
10001001001002525
Location: gods country		so thats why u went to workin in the tro the other day..one of the drivers said to me he had just seen a ryt metro
dazbooker
Posted 14/8/2009 6:26 AM (#524812 - in reply to #474141)
Subject: RE: turbo k series
Expert

Posts: 1265
10001001002525
Location: barnsley		well been a while since i last posted. Got my rover 220 turbo gearbox ready to build onjto k series bell housing just waiting for it to come back from machine shop wher im having it altered to take larger bearing. Then off to powder coaters were i will have casings done
Access_denied
Posted 14/8/2009 7:31 AM (#524815 - in reply to #524812)
Subject: RE: turbo k series


Expert

Posts: 6619
50001000500100
Location: Guildford
dazbooker - 14/8/2009 12:26 PM

well been a while since i last posted. Got my rover 220 turbo gearbox ready to build onjto k series bell housing just waiting for it to come back from machine shop wher im having it altered to take larger bearing. Then off to powder coaters were i will have casings done


Does not need machining since the outer race of the bearing is the same. You can drill and tap 2 holes to take the patch lock though if you like but its not really a machine shop job.
ralphh85
Posted 14/8/2009 7:41 AM (#524816 - in reply to #474141)
Subject: RE: turbo k series
Expert

Posts: 9862
5000200020005001001001002525
Location: Cornwall		i didnt bother with the 2 holes, asumed it wasnt really needed as the other box didnt have it, had no problem from it yet.

built the box myself at home.


Ralph
dazbooker
Posted 14/8/2009 8:15 AM (#524817 - in reply to #474141)
Subject: RE: turbo k series
Expert

Posts: 1265
10001001002525
Location: barnsley		well been a while since i last posted. Got my rover 220 turbo gearbox ready to build onjto k series bell housing just waiting for it to come back from machine shop wher im having it altered to take larger bearing. Then off to powder coaters were i will have casings done
DotMatrix
Posted 14/8/2009 5:09 PM (#524881 - in reply to #474141)
Subject: RE: turbo k series


Expert

Posts: 4458
200020001001001001002525
Location: Jelling, Denmark		great car you have there. a lot of work gone in to it. it shows. and damn a tightly packet engine bay
Andy
Posted 14/8/2009 5:18 PM (#524883 - in reply to #518897)
Subject: RE: turbo k series


500100252525
dazbooker - 1/7/2009 12:24 AM

and the stabilizer bar


Daz - where did you get the bushes from for the stabiliser bar?

Cheers

Andy
Andy
Posted 14/8/2009 5:22 PM (#524886 - in reply to #518898)
Subject: RE: turbo k series


500100252525
quick_spider - 1/7/2009 12:27 AM

Looks very nice.

There's a further mod to the selector mechanism which replaces the linkage part in pic 004 with the UJ from a steering column - makes the gear change even more positive.


Couldn't agree with this more. This mod makes the PG1 gearchange absolutely awesome and is really easy to do.
dazbooker
Posted 14/8/2009 6:08 PM (#524888 - in reply to #524815)
Subject: RE: turbo k series
Expert

Posts: 1265
10001001002525
Location: barnsley
Access_denied - 14/8/2009 7:31 AM
dazbooker - 14/8/2009 12:26 PM well been a while since i last posted. Got my rover 220 turbo gearbox ready to build onjto k series bell housing just waiting for it to come back from machine shop wher im having it altered to take larger bearing. Then off to powder coaters were i will have casings done
Does not need machining since the outer race of the bearing is the same. You can drill and tap 2 holes to take the patch lock though if you like but its not really a machine shop job.

i know that the barings are the same but where the plate bolts to hold th bearing in place sits too high so just having these taken down a bit to where they should be
dazbooker
Posted 14/8/2009 6:11 PM (#524890 - in reply to #524883)
Subject: RE: turbo k series
Expert

Posts: 1265
10001001002525
Location: barnsley
Andy - 14/8/2009 5:18 PM
dazbooker - 1/7/2009 12:24 AM and the stabilizer bar
Daz - where did you get the bushes from for the stabiliser bar? Cheers Andy
motobuild mate
dazbooker
Posted 18/8/2009 6:48 AM (#525246 - in reply to #474141)
Subject: RE: turbo k series
Expert

Posts: 1265
10001001002525
Location: barnsley		got a full bearing kit for my box today for hundred quid . Been quoted three hundred on ebay what rip off
dazbooker
Posted 21/8/2009 6:20 AM (#525693 - in reply to #474141)
Subject: RE: turbo k series
Expert

Posts: 1265
10001001002525
Location: barnsley		just bought the lotus elise ap clutch off ebay for 300 quid to go with my turbo box
dazbooker
Posted 27/8/2009 2:45 PM (#526366 - in reply to #474141)
Subject: RE: turbo k series
Expert

Posts: 1265
10001001002525

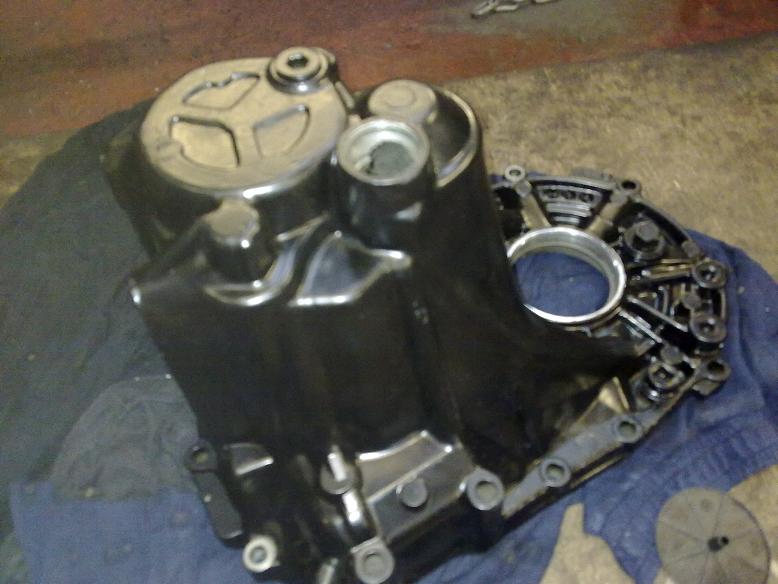

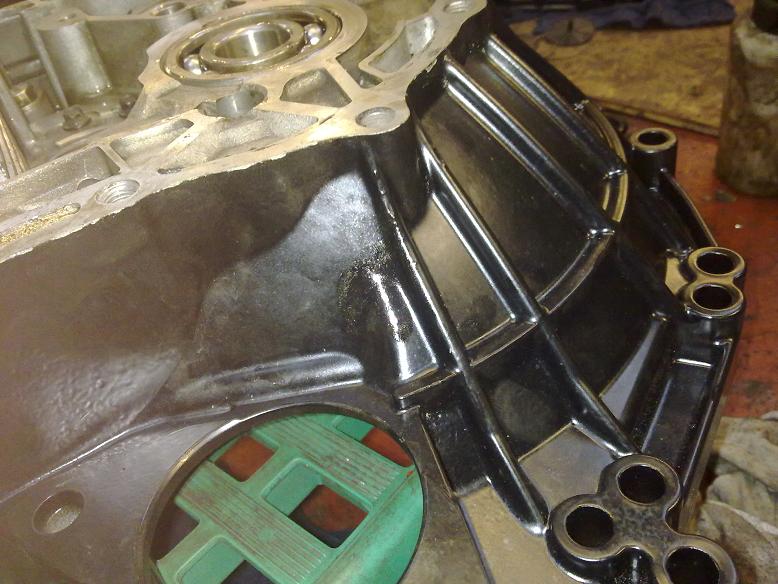

Location: barnsley		picked my gearbox up from powder coaters this morning
started to build it with all new bearings and seals

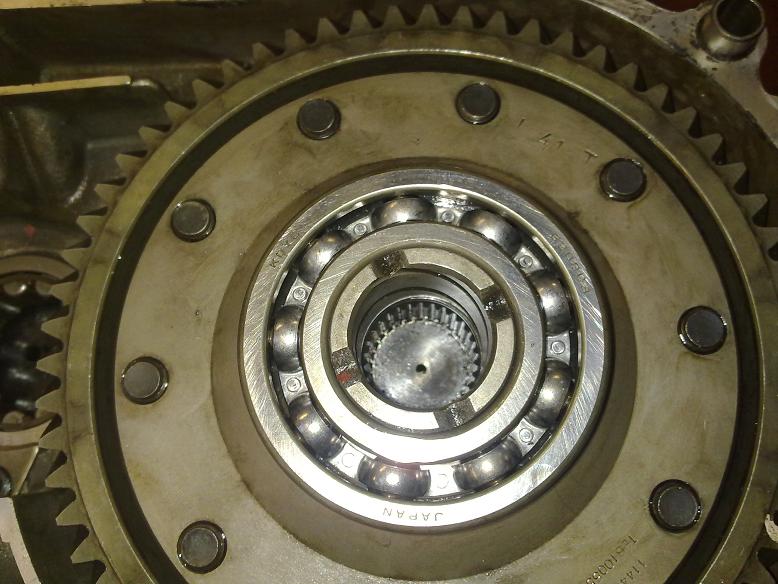

using a typa torsen diff in this box as you can see from pics

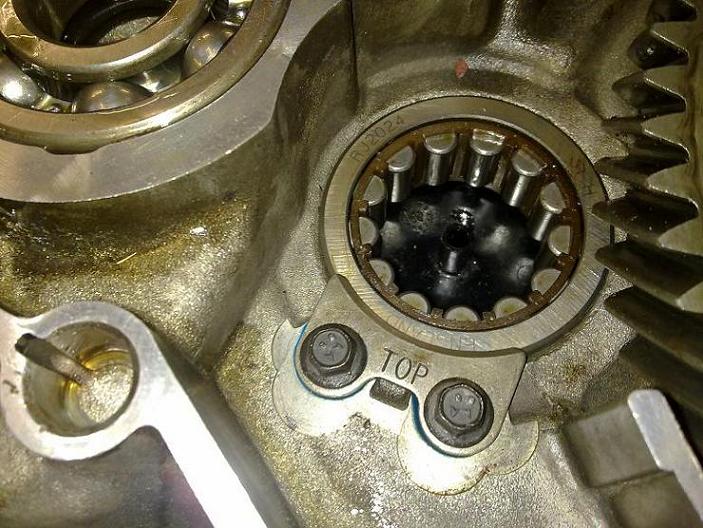

and you can see where i had the box machined to take the patch lock clamp and bolts

Edited by dazbooker 27/8/2009 2:50 PM




(001.jpg)



(002.jpg)



(003.jpg)



(004.jpg)



Attachments
----------------
Attachments 001.jpg (65KB - 108 downloads)
Attachments 002.jpg (85KB - 99 downloads)
Attachments 003.jpg (95KB - 104 downloads)
Attachments 004.jpg (88KB - 99 downloads)
dazbooker
Posted 27/8/2009 2:53 PM (#526369 - in reply to #474141)
Subject: RE: turbo k series
Expert

Posts: 1265
10001001002525

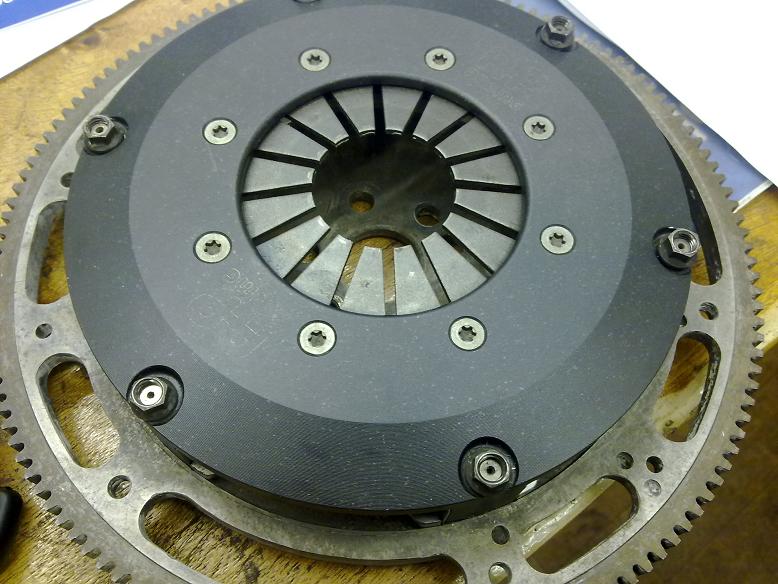

Location: barnsley		heare a pic of the ap clutch and flywheel im fitting



(005.jpg)



Attachments
----------------
Attachments 005.jpg (88KB - 98 downloads)
dazbooker
Posted 29/8/2009 8:39 AM (#526529 - in reply to #474141)
Subject: RE: turbo k series
Expert

Posts: 1265
10001001002525

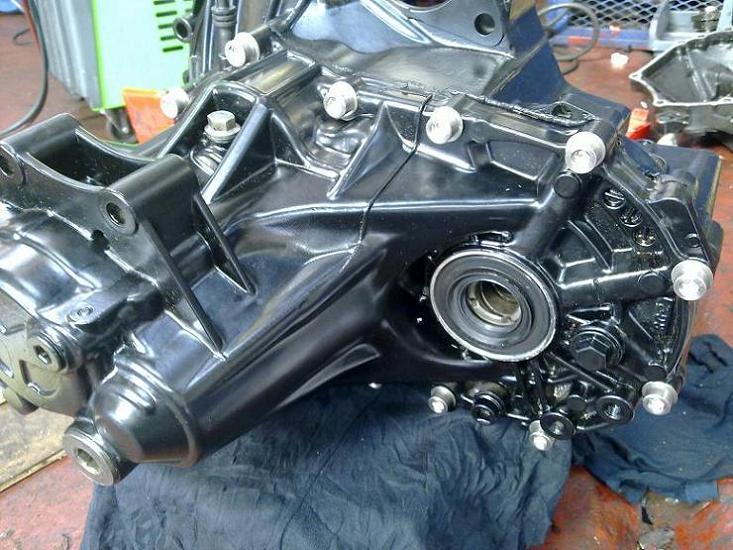

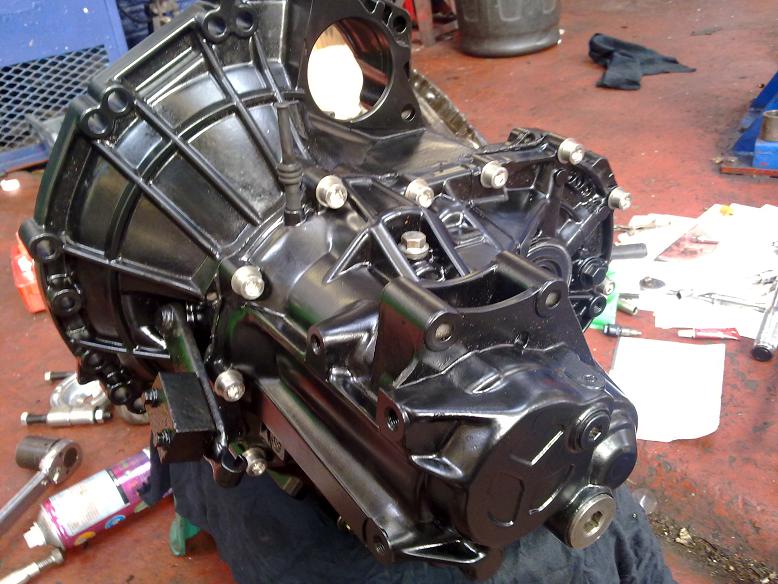

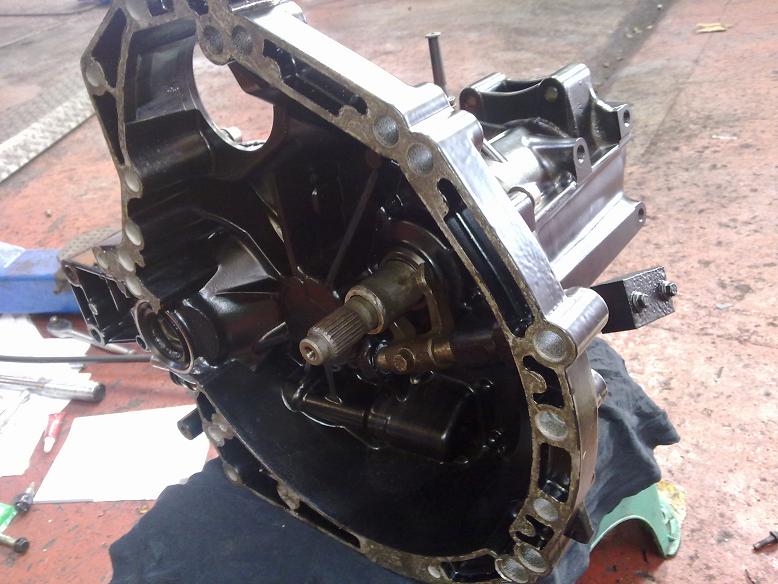

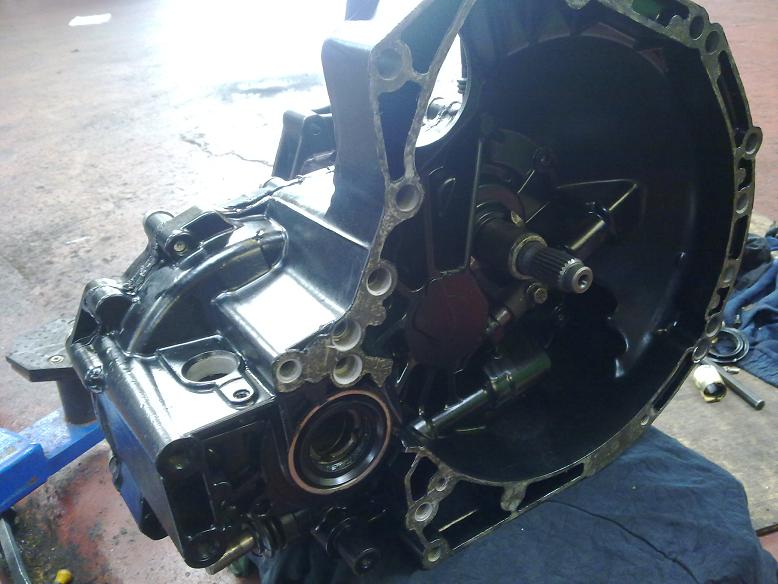

Location: barnsley		heres the gearbox all finished



(001.jpg)



(002.jpg)



(003.jpg)



(004.jpg)



Attachments
----------------
Attachments 001.jpg (99KB - 96 downloads)
Attachments 002.jpg (98KB - 93 downloads)
Attachments 003.jpg (75KB - 91 downloads)
Attachments 004.jpg (85KB - 80 downloads)
belly91
Posted 29/8/2009 9:34 AM (#526535 - in reply to #474141)
Subject: RE: turbo k series
Veteran

Posts: 318
100100100
Location: Sutton in Ashfield, Notts		looking good daz, keep up the good work bud
DAVESEI
Posted 29/8/2009 10:28 AM (#526545 - in reply to #474141)
Subject: RE: turbo k series
previously known as....Dazgta

Posts: 2019
2000
Location: birmingham		looking fresh mate
J22BBA
Posted 29/8/2009 12:06 PM (#526556 - in reply to #474141)
Subject: RE: turbo k series


Porn King

Posts: 1898
1000500100100100252525

Do u just have a huge pot of money sitting with the words metro funds on it ?

looks epic wish i has the time money and skills to have a car like urs mate well done .

jeckulz
Posted 29/8/2009 12:41 PM (#526559 - in reply to #474141)
Subject: RE: turbo k series


Big Lad Little Car

500010005001001001002525
Location: North West (Warrington)		Man, that's pure attention to detail there.
Powder coated inner bellhousing!!!!

Awesome.
Like Jabba, I'd also like to know if youre selling crack or pimping your missuz or something? LOL


Dont quit now mate!

Strip it down for a dip, welding, galving and respray? LOL

Edited by jeckulz 29/8/2009 12:42 PM
Alex_Metro
Posted 29/8/2009 12:50 PM (#526562 - in reply to #474141)
Subject: RE: turbo k series
Extreme Veteran

Posts: 558
5002525
Looking good Daz. I've had bad experiences with those particular oil seals though - the one seemed fairly loose in the hole and it never sealed when the driveshaft went in + they are difficult to get dead square without the 'outer protection ring' hope you don't get the same issues.

Alex
