Expert
Posts: 1265

Location: barnsley | the spring compressors an original rover tool i bought when i was working at rover dealer only used it twice can use this to remove valve springs in situ to change valve stem oil seals |
|
| |
|
Expert
Posts: 1265

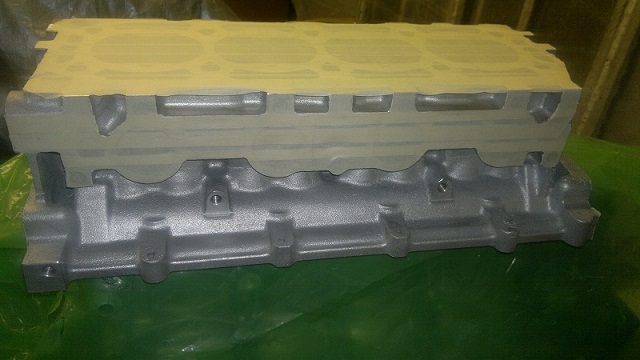

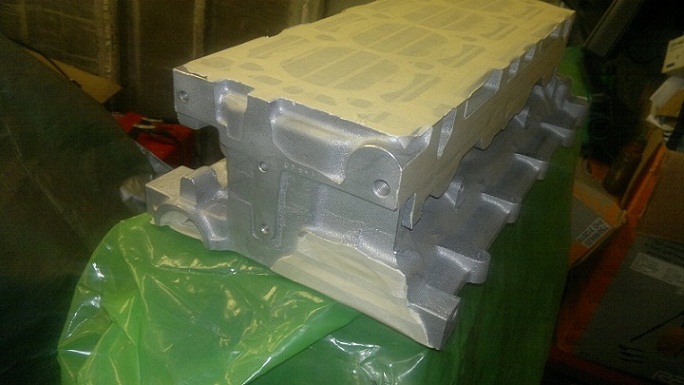

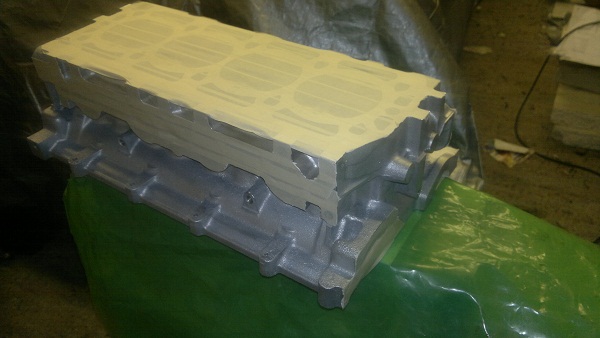

Location: barnsley | fitted the last valve in this moring and masked it up ready for painting
 (002.jpg)
 (001.jpg)
 (003.jpg)
Attachments
----------------
|
|
| |
|
Expert
Posts: 1465
Location: barnsley,south yorkshire / www.djtommib.co.uk | loving the progress mate |
|
| |
|
Expert
Posts: 1465
Location: barnsley,south yorkshire / www.djtommib.co.uk | loving the progress mate |
|
| |
|
Expert
Posts: 1265

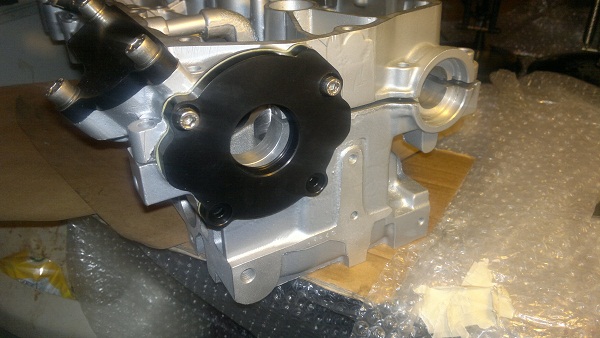

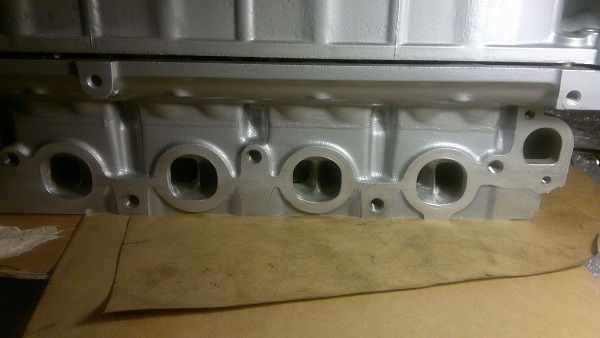

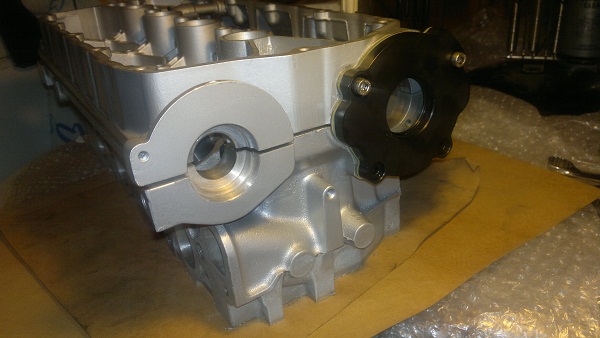

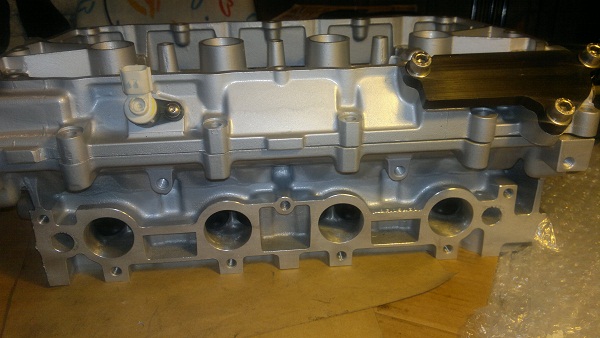

Location: barnsley | painted the head need to get the cams balanced now before i fit it together
 (005.jpg)
 (007.jpg)
 (008.jpg)
 (009.jpg)
Attachments
----------------
|
|
| |
|
Expert
Posts: 1265

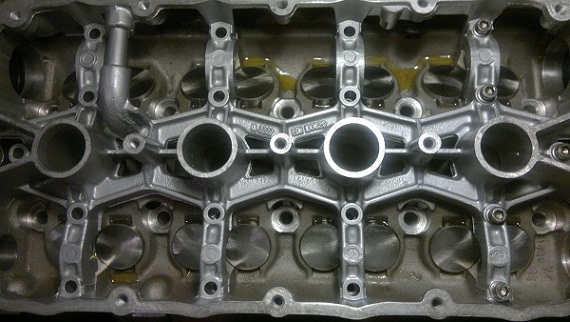

Location: barnsley | got the new hydraulic lifters fitted not a lot i can do with the head now until i get the cams balanced
 (002.jpg)
Attachments
----------------
|
|
| |
|
Posts: 2794

Location: Tamworth/Measham | dazbooker - 17/1/2011 2:15 PM
got the new hydraulic lifters fitted not a lot i can do with the head now until i get the cams balanced
i love this car,that engine is sh*t hot mate,keep it coming  |
|
| |
|
Expert
Posts: 2907
Location: a pub in yorkshire | Why have you gone for hydraulic lifters rather than solid ones? |
|
| |
|
Expert
Posts: 1265
Location: barnsley | Tom Sanderson - 18/1/2011 9:22 AM Why have you gone for hydraulic lifters rather than solid ones? i used hydraulic as i had a new standard profile exhaust cam for hydraulic lifters and couldnt see point in having one made to take solid lifters so i kept that and had a inlet cam made to take hydraulic lifters to standard profile |
|
| |
|
Expert
Posts: 2812
Location: Bournemouth | Tom Sanderson - 17/1/2011 5:22 PM
Why have you gone for hydraulic lifters rather than solid ones?
No need to go solid unless your going above 7500 |
|
| |
|
Expert
Posts: 1265
Location: barnsley | djwilma - 18/1/2011 3:25 PM Tom Sanderson - 17/1/2011 5:22 PM Why have you gone for hydraulic lifters rather than solid ones? No need to go solid unless your going above 7500 yeh thats what ive been told too |
|
| |
|
Expert
Posts: 2907
Location: a pub in yorkshire | Solid lifters reduce drag on the cam and you dont get the lag from the oil pressure build up needed for a hydraulic lifter. May be very slight though i have never fitted them to a k series. |
|
| |
|
Expert
Posts: 1265
Location: barnsley | got a call from qed today my pistons and rods are in stock off to pick them up on tuesday and straight for balancing along with a few other things |
|
| |
|
Expert
Posts: 1265
Location: barnsley | got the gearbox out today and removed the clutch ,flywheel,crank pulley and cam pulleys to take with me when i go to pick the pistons up then i can go straight to vibration free for them balancing also found that im going to have to use the alloy thermostat housing and early metal pipe off my old engine as the later metal coolant hose that attatches to the later plastic housing routes the wrong way and wont fit
Edited by dazbooker 22/1/2011 12:04 PM
|
|
| |
|
Member
Posts: 57

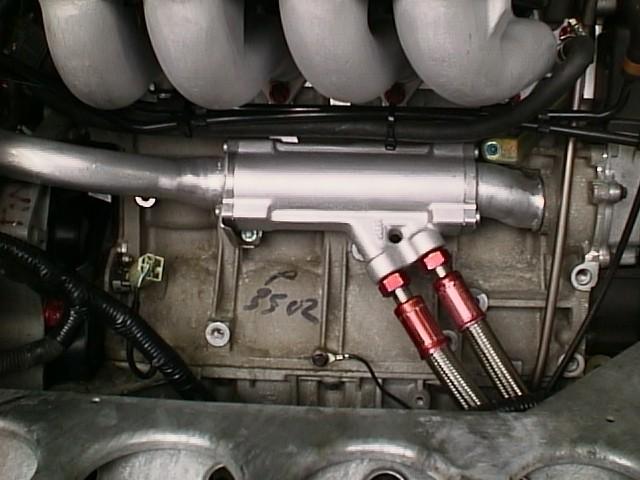

| the water / oil cooler from a kv6 can be made to fit here its a good solution for an oil cooler if tight on space
I will see if i can post a photo
the guy that did it is very clever, he has custom made quite a few parts on his elise
Edited by elise 23/1/2011 12:41 AM
 (yasecs_oil_cooler.jpg)
Attachments
----------------
|
|
| |
|
Expert
Posts: 1265
Location: barnsley | elise - 23/1/2011 12:19 AM the water / oil cooler from a kv6 can be made to fit here its a good solution for an oil cooler if tight on space I will see if i can post a photo the guy that did it is very clever, he has custom made quite a few parts on his elise yeh does look neat but not a big fan of the oil to water cooler after ive seen what happens when they fail on the vw/audis ive worked on at work but saying that ive never seen a kv6 one fail and you can fit it there as long as you not using vvc coil as there wont be room
Edited by dazbooker 23/1/2011 2:27 AM
|
|
| |
|
Member
Posts: 57
| yes its very neat but i have 3 oil coolers as it is
1) large fromt mount for oil ( fitted on an elise )
2) small front mount linked to large for turbo supply
3) water/ oil to control the temps ( warm oil from cold then keep temps constant )
bit of overkill really
|
|
| |
|
Expert
Posts: 2812
Location: Bournemouth | elise - 22/1/2011 8:19 AM
the water / oil cooler from a kv6 can be made to fit here its a good solution for an oil cooler if tight on space
I will see if i can post a photo
the guy that did it is very clever, he has custom made quite a few parts on his elise
Interesting was lookin.g at laminova, but this looks neat.
Daz assume failures are oil and water mixing etc |
|
| |
|
Expert
Posts: 1265
Location: barnsley | djwilma - 23/1/2011 4:17 AM elise - 22/1/2011 8:19 AMthe water / oil cooler from a kv6 can be made to fit here its a good solution for an oil cooler if tight on spaceI will see if i can post a photo the guy that did it is very clever, he has custom made quite a few parts on his elise Interesting was lookin.g at laminova, but this looks neat.Daz assume failures are oil and water mixing etc |
|
| |
|
Expert
Posts: 1265
Location: barnsley | djwilma - 23/1/2011 4:17 AM elise - 22/1/2011 8:19 AMthe water / oil cooler from a kv6 can be made to fit here its a good solution for an oil cooler if tight on spaceI will see if i can post a photo the guy that did it is very clever, he has custom made quite a few parts on his elise Interesting was lookin.g at laminova, but this looks neat.Daz assume failures are oil and water mixing etc |
|
| |
|
Posts: 2794
Location: Tamworth/Measham | Cheers for the box,pics are loaded gave it a clean   |
|
| |
|
Expert
Posts: 1265
Location: barnsley | just found out that the later metro spi went on to plastic thermostat housing and that i can get a new steel coolant pipe that follws the rout i need from rimmer brothers now ordered |
|
| |
|
Track Slag
Posts: 5060
Location: Washington | daz i hope you dont mind my stupid questions however,
where are the oil feeds for the turbo? At what point do they come in and out of the block, you couldnt take pictures of it could you? |
|
| |
|
Expert
Posts: 1265
Location: barnsley | Jack of Hearts - 23/1/2011 2:05 PM daz i hope you dont mind my stupid questions however, where are the oil feeds for the turbo? At what point do they come in and out of the block, you couldnt take pictures of it could you? the oil feed for the turbo comes out of the top of the oil filter housing through a steel pipe and the return goes int the oil ladder dont really have any pics at the moment of the turbo but there may be something if you look through the journal |
|
| |
|
Track Slag
Posts: 5060
Location: Washington | ok i understand the oil filter housing bit, but it goes back into the oil ladder? from the turbo via a pipe into the sump? |
|
| |
